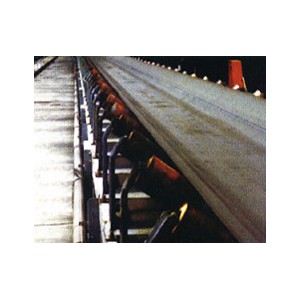

1、TD belt conveyor purpose and feature
The key feature of TD general-purpose fixed type belt conveyor is that the supporting roller is installed on the chassis, the chassis is floor type, therefore, TD belt conveyor has been widely used in metallurgy, coal, hydroelectricity, mine to convey the bulk material or material in package, it may be used separately, or establish the conveying system with other conveyors.
2、TD belt conveyor structural composition:
TD belt conveyor is composed of the conveyor belt, driving gear, pulley, supporting roller, tensioning device, unloading device
3、TD belt conveyor installation mode: horizon, inclination, convex arc, concave arc, curve;
|
型号 Type |
胶带宽度(mm) Width of rubber belt |
托辊形状 Shape of supporting roller |
槽形 Shape of trough |
|
|||||
|
|
|
0.8 |
1 |
1.6 |
1.25 |
1.6 |
2 |
2.5 |
|
|
TD75 |
500 |
78 |
97 |
156 |
122 |
156 |
191 |
232 |
|
|
TD75 |
600 |
131 |
164 |
264 |
206 |
264 |
323 |
391 |
|
|
TD75 |
800 |
|
278 |
445 |
348 |
445 |
546 |
691 |
|
