EP Conveyor Belt

1. Polyester conveyor belt characteristics:

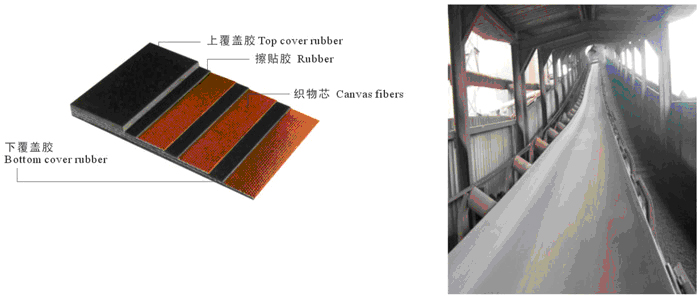

   Polyester conveyor belt also called EP conveyor belts,which tension resistant body is canvas that is woven by polyster in warp and polyamide in weft.

   Polyester conveyor belt with the advantages of thin belt with light weight,high tensile strength,fatigue and wear resistance,erosion resistance of water/steam/chemical,good impact resistance, excellent groove formation ability. Polyester conveyor belt with low elongation,good stability ever heater and long service life.Polyester conveyor belt is the developing trend of fabric conveyor belt.

 2. Polyester conveyor belt usage:

   Polyester conveyor belt is mainly used in harsh condition of long distance,heavy-load,high-chemical of long distance,heavy-load,high-chemical corrosive etc. Polyester conveyor belt is especially suitable for transporting in moist environment.

3. Polyester conveyor belt types:

   Besides General-used EP Belt,there are Fire-retardant type,Cold-resistant type,Wear-resistant type,Heat-resistant type,Acid & alkaline resistant type,Oil-resistant type,Antistatic electricity type,High-grade type and etc.

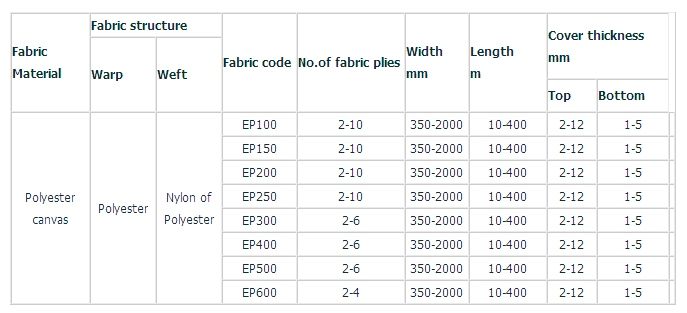

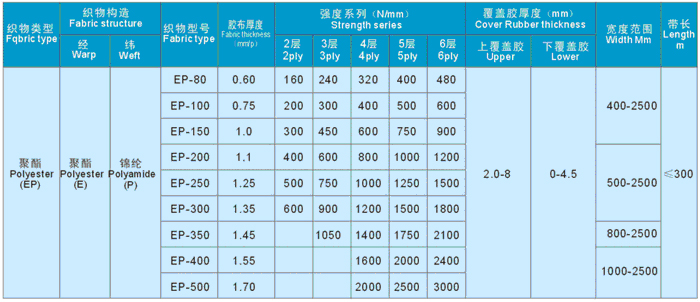

Specification and technical index of multi-ply EP conveyor belt：

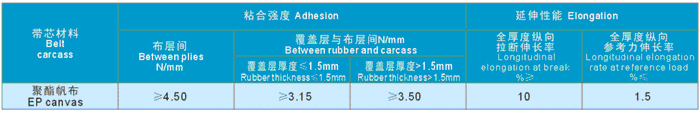

Adhesion and elongation

 Cover rubber’s characteristics

Attention: Cover grade: H- High intensity working condition ; D-High abrasion working condition ; L-Normal working condition.

Standards:

   Our company also can produce all kinds of Polyester conveyor belt under GB/T7984-2001,DIN22102,BS490,AS1332,RMA,JISK6322,SABS1173 etc
