Rough Top Conveyor Belt
Patterned Conveyor Belt Description
1. Shape and characteristic
On the surface of the patterned conveyor belt, there is chevron pattern higher than the belt body. The pattern may be either open-end or closed. Each kind of pattern includes three types. High, medium and low.
2. Patterned Conveyor Belt Usage
Patterned conveyor belt can convey powdered, granulated and small lump materials at the inclination of no more than 40, it can also convey packaged materials.
Patterned conveyor belt is composed of belt carcass and pattern. The shape and heigh(depth) of pattern is subjected to the material it conveyory and the angle of the machine.
3. Patterned Conveyor Belt Types

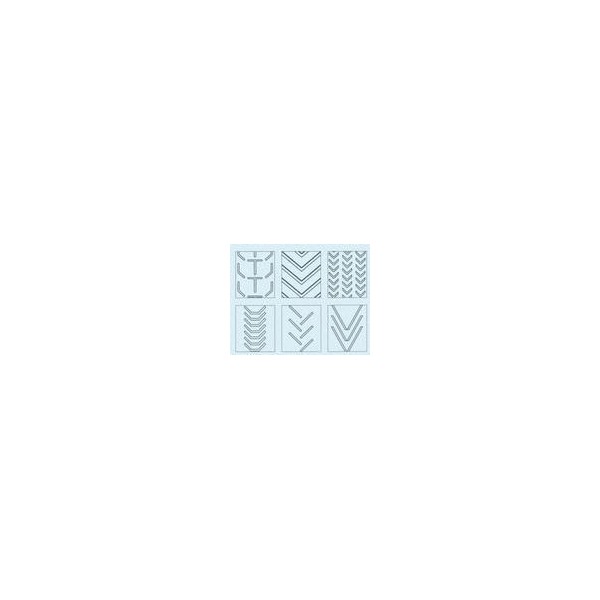

The pattern conveyor belt is composed of the belt carcass and pattern, since the material to be conveyed and the angle of inclination of the conveyor are different, the shape and height (depth) of the pattern are different. The typical rough top conveyor belts are as follows:sector pattern; granular pattern; strip pattern; chevron pattern.
Our company is able to supply the rough top conveyor belt whose width ≤2400mm.
|

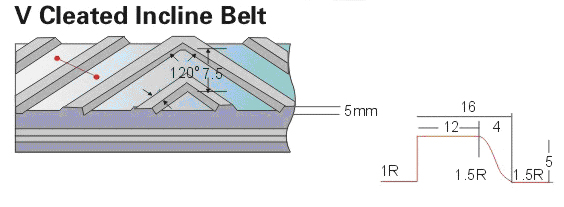

Steep Lncline Belt(C15 Type) |
||
|
A Beit Width |
B Pattern Width |
C Pitch |
|
500 |
385 |
250 |
|
600 |
385 |
250 |
|
650 |
385 |
250 |
|
650 |
385 |
250 |
|
750 |
600 |
370 |
|
900 |
600 |
370 |
|
1,000 |
600 |
370 |
(Unit:mm)

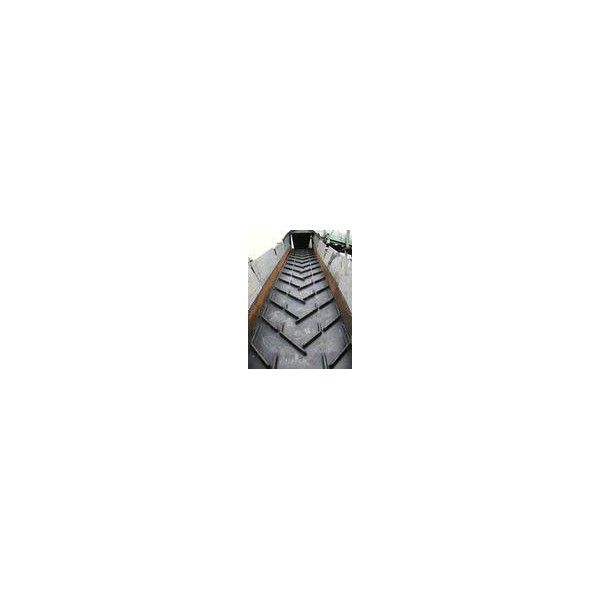

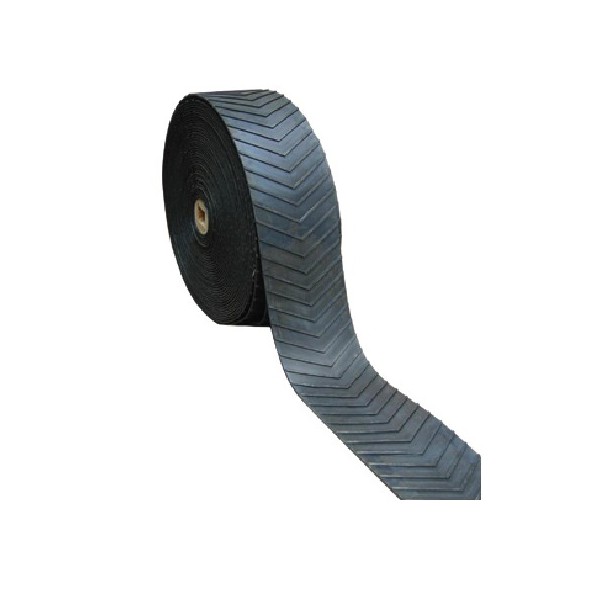

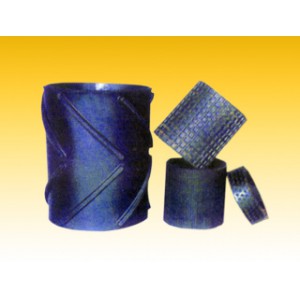

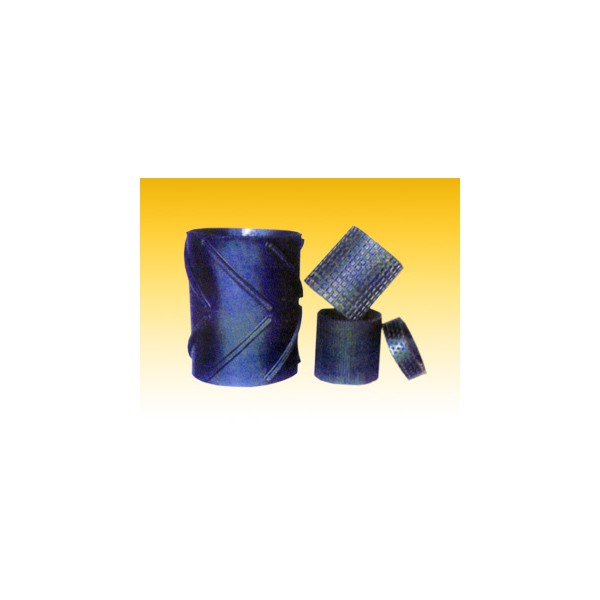

Product Images: Patterned Conveyor Belt
